Multi-survey CMDs: LSST + Roman

Multi-survey CMDs: LSST + Roman#

This notebook demonstrates the StreamInjector multi-survey workflow by injecting a mock stellar stream into both LSST Year 4 and Roman DC2 surveys simultaneously. The same physical stars carry photometry from both instruments, enabling cross-survey colour-magnitude diagrams (CMDs).

Three CMDs are shown:

  1. LSST yr4: (g − r) vs r

  2. Roman DC2: (F106_obs − F158_obs) vs F158_obs — fully observed both bands

  3. Cross-survey: (g_LSST − F158_Roman) vs F158

Each panel overlays true (noiseless) magnitudes in grey with observed (noise- and selection-function-convolved) magnitudes in colour.

Note

Roman survey used here. The Roman DC2 survey (roman_dc2) covers RA ≈ 51–56°, Dec ≈ −38° to −42° — a small synthetic footprint derived from the Roman-Rubin DC2 simulation (Troxel et al. 2023). It carries three bands (F106, F129, F158) with full selection-function products for both F106 and F158, enabling a fully-observed two-band Roman CMD. The Roman HLWAS wide-area survey (roman_hlwas_wide) is F158-only and cannot support a two-band Roman CMD; roman_dc2 is used here specifically to illustrate the F106−F158 colour axis.

Note

Shared footprint. The stream stars are pre-placed in the DC2 region (RA 52–55°, Dec −41.5° to −38.5°, centred at roughly RA 53.5°, Dec −40°). Both surveys have valid magnitude-limit maps across this area (LSST yr4 covers the full extragalactic sky; Roman DC2 is defined there). Pre-supplying ra/dec avoids the great-circle-frame search, which is unreliable for a small footprint.

Setup#

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec

from streamobs.observed import StreamInjector

Build the multi-survey injector#

A single StreamInjector instance handles both LSST yr4 and Roman DC2. The column namespace for each survey is {name}_{release}:

  • LSST Year 4 → lsst_yr4

  • Roman DC2 → roman_dc2

injector = StreamInjector(
    [
        {"survey": "lsst",  "release": "yr4"},
        {"survey": "roman", "release": "dc2"},
    ],
    verbose=False,
)

print("Surveys loaded:", list(injector.surveys.keys()))
print("Primary survey:", injector.primary_namespace)

/astro/store/shire/pferguso/software/streamobs/streamobs/surveys.py:1090: HealpyDeprecationWarning: "verbose" was deprecated in version 1.15.0 and will be removed in a future version.
  survey.maglim_maps[band] = hp.read_map(full_path, verbose=False)

Surveys loaded: ['lsst_yr4', 'roman_dc2']
Primary survey: lsst_yr4

Stream model configuration#

The stream is an old, metal-poor population (age 12 Gyr, Z = 0.0006) placed at a distance modulus of 16.8 mag (~22 kpc). At this distance the main-sequence turn-off falls at r ≈ 21–22 (within LSST reach) and F158 ≈ 20–21 (well above Roman DC2 depth).

The isochrone is defined for both surveys at once via the surveys: mapping. ugali Roman band names are uppercase (F106, F158); the keys must match the survey namespace so the injector can route true-magnitude columns correctly.

NSTARS      = 3000
DIST_MOD    = 16.8   # distance modulus (mag) -> ~22 kpc
SEED        = 42

stream_config = {
    "nstars": NSTARS,
    "density": {"type": "Uniform", "xmin": -5.0, "xmax": 5.0},
    "track": {
        "center": {"type": "Constant", "value": 0.0},
        "spread": {"type": "Constant", "value": 0.2},
        "sampler": "Gaussian",
    },
    "distance_modulus": {
        "center": {"type": "Constant", "value": DIST_MOD},
        "spread": {"type": "Constant", "value": 0.0},
    },
    "isochrone": {
        "name": "Marigo2017",
        "age":  12.0,    # Gyr
        "z":    0.0006,  # metallicity
        "surveys": {
            # Key = column namespace; inner survey = ugali filter set
            "lsst_yr4":  {"survey": "lsst",  "band_1": "g",    "band_2": "r"},
            "roman_dc2": {"survey": "roman", "band_1": "F106", "band_2": "F158"},
        },
    },
}

Place the stream in the Roman DC2 footprint#

Roman DC2 covers only a small patch (RA 51–56°, Dec −38° to −42°). To guarantee both surveys’ magnitude-limit maps are finite at every star position, we pre-assign ra/dec directly within this region — skipping the great-circle frame search, which can fail for such a small footprint.

rng = np.random.default_rng(SEED)

# Uniformly scatter stars within the DC2 patch (RA 52-55 deg, Dec -41.5 to -38.5 deg)
ra  = rng.uniform(52.0, 55.0, NSTARS)
dec = rng.uniform(-41.5, -38.5, NSTARS)
input_catalog = pd.DataFrame({"ra": ra, "dec": dec})

print(f"Input: {len(input_catalog)} stars, RA {ra.min():.1f}-{ra.max():.1f} deg,"
      f" Dec {dec.min():.1f}-{dec.max():.1f} deg")

Input: 3000 stars, RA 52.0-55.0 deg, Dec -41.5--38.5 deg

Step 1 — Sample true magnitudes from the shared isochrone#

complete_data draws one set of stellar masses and interpolates those masses into every survey’s filter set, so each star’s LSST and Roman photometry describe the same physical object. We request the Roman bands using ugali’s uppercase notation (F106, F158) — the resulting column names are roman_F106_true and roman_F158_true.

catalog_true = injector.complete_data(
    input_catalog,
    bands={"lsst_yr4": ["g", "r"], "roman_dc2": ["F106", "F158"]},
    stream_config=stream_config,
    dist=DIST_MOD,
    seed=SEED,
    verbose=False,
)

true_cols = [c for c in catalog_true.columns if c.endswith("_true")]
print("True-magnitude columns:", true_cols)

True-magnitude columns: ['lsst_g_true', 'lsst_r_true', 'roman_F106_true', 'roman_F158_true']

Step 2 — Inject observational effects#

inject applies photometric noise and the survey selection function to produce observed magnitudes. We now inject both Roman DC2 bands (F106 and F158), since the config wires maglim_map_F106 and maglim_map_F158 for roman_dc2.

  • LSST yr4: g and r

  • Roman DC2: F106 and F158

The Roman DC2 detection flag (roman_dc2_flag_observed) is driven by F158 (the primary detection band). Observed colours (F106_obs − F158_obs) may be available for a smaller subset of Roman-detected stars because F106 is shallower for red sources — that subset is masked and counted below.

catalog_obs = injector.inject(
    catalog_true,
    bands={"lsst_yr4": ["g", "r"], "roman_dc2": ["F106", "F158"]},
    dist=DIST_MOD,
    seed=SEED,
    verbose=False,
)

lsst_det  = catalog_obs["lsst_yr4_flag_observed"]
roman_det = catalog_obs["roman_dc2_flag_observed"]
both_det  = lsst_det & roman_det

print(f"Stars with LSST yr4 detection:   {lsst_det.sum():4d} / {NSTARS}")
print(f"Stars with Roman DC2 detection:  {roman_det.sum():4d} / {NSTARS}")
print(f"Stars detected by both surveys:  {both_det.sum():4d} / {NSTARS}")

Stars with LSST yr4 detection:    468 / 3000
Stars with Roman DC2 detection:  1163 / 3000
Stars detected by both surveys:   390 / 3000

/astro/store/shiren/conda-envs/stream_team/envs/streamobs/lib/python3.14/site-packages/pandas/core/arraylike.py:402: RuntimeWarning: invalid value encountered in log10
  result = getattr(ufunc, method)(*inputs, **kwargs)
/astro/store/shiren/conda-envs/stream_team/envs/streamobs/lib/python3.14/site-packages/pandas/core/arraylike.py:402: RuntimeWarning: invalid value encountered in log10
  result = getattr(ufunc, method)(*inputs, **kwargs)
/astro/store/shiren/conda-envs/stream_team/envs/streamobs/lib/python3.14/site-packages/pandas/core/arraylike.py:402: RuntimeWarning: invalid value encountered in log10
  result = getattr(ufunc, method)(*inputs, **kwargs)
/astro/store/shiren/conda-envs/stream_team/envs/streamobs/lib/python3.14/site-packages/pandas/core/arraylike.py:402: RuntimeWarning: invalid value encountered in log10
  result = getattr(ufunc, method)(*inputs, **kwargs)

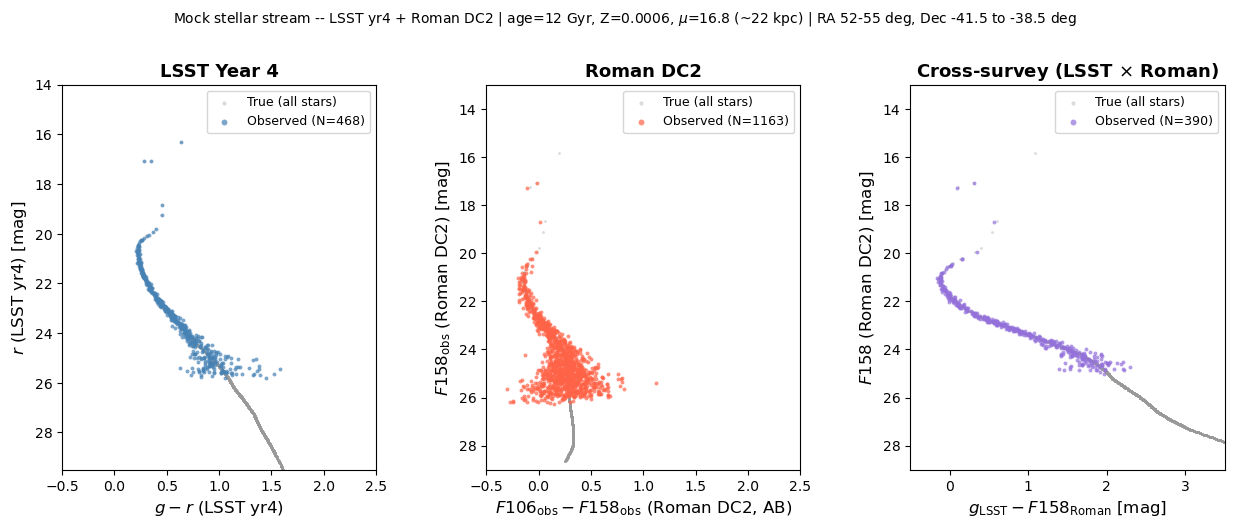

Colour-magnitude diagrams#

Three CMDs with true photometry (grey, faint) overlaid by observed photometry (coloured). Detected stars only are shown in the observed panels.

Verified output column names:

  • lsst_g_true, lsst_yr4_g_obs

  • lsst_r_true, lsst_yr4_r_obs

  • roman_F106_true, roman_dc2_F106_obs

  • roman_F158_true, roman_dc2_F158_obs

The Roman DC2 observed panel uses fully observed magnitudes for both bands (roman_dc2_F106_obs − roman_dc2_F158_obs). Stars where the noisy F106 flux went negative are recorded as "BAD_MAG" and are excluded from the colour axis, so the observed Roman sample may be smaller than the F158-detected count — that is physical (F106 is shallower for red MS stars).

# -- Extract photometry columns -----------------------------------------------
# LSST yr4 -- true
g_true = catalog_obs["lsst_g_true"]
r_true = catalog_obs["lsst_r_true"]
# LSST yr4 -- observed (detected only)
g_obs  = catalog_obs.loc[lsst_det, "lsst_yr4_g_obs"]
r_obs  = catalog_obs.loc[lsst_det, "lsst_yr4_r_obs"]

# Roman DC2 -- true (note: F106/F158 uppercase from ugali isochrone)
f106_true = catalog_obs["roman_F106_true"]
f158_true = catalog_obs["roman_F158_true"]

# Roman DC2 -- observed (both bands); coerce BAD_MAG strings to NaN, require valid pair
f106_obs_all = pd.to_numeric(catalog_obs["roman_dc2_F106_obs"], errors="coerce")
f158_obs_all = pd.to_numeric(catalog_obs["roman_dc2_F158_obs"], errors="coerce")
roman_obs_ok = roman_det & f106_obs_all.notna() & f158_obs_all.notna()
f106_obs = f106_obs_all[roman_obs_ok]
f158_obs = f158_obs_all[roman_obs_ok]

print(f"Roman DC2 F158-detected:         {roman_det.sum():4d}")
print(f"Roman DC2 obs-colour valid (both bands finite): {roman_obs_ok.sum():4d}")

# Cross-survey (stars detected by both)
g_obs_both    = catalog_obs.loc[both_det, "lsst_yr4_g_obs"]
f158_obs_both = catalog_obs.loc[both_det, "roman_dc2_F158_obs"]

# -- Plot settings ------------------------------------------------------------
TRUE_KW = dict(s=4, color="0.6", alpha=0.35, linewidths=0, label="True (all stars)")
OBS_KW  = dict(s=8, alpha=0.70, linewidths=0)

SURVEY_COLORS = {"lsst": "steelblue", "roman": "tomato", "cross": "mediumpurple"}

fig = plt.figure(figsize=(15, 5))
gs  = gridspec.GridSpec(1, 3, figure=fig, wspace=0.35)

# -- CMD 1: LSST yr4 (g - r) vs r ---------------------------------------------
ax1 = fig.add_subplot(gs[0])
ax1.scatter(g_true - r_true, r_true, **TRUE_KW)
ax1.scatter(g_obs - r_obs, r_obs,
            color=SURVEY_COLORS["lsst"],
            label=f"Observed (N={lsst_det.sum()})",
            **OBS_KW)
ax1.set_xlabel(r"$g - r$ (LSST yr4)", fontsize=12)
ax1.set_ylabel(r"$r$ (LSST yr4) [mag]", fontsize=12)
ax1.set_title("LSST Year 4", fontsize=13, fontweight="bold")
ax1.set_xlim(-0.5, 2.5)
ax1.set_ylim(29.5, 14.0)
ax1.legend(fontsize=9, markerscale=1.5)
ax1.tick_params(labelsize=10)

# -- CMD 2: Roman DC2 (F106 - F158) vs F158 -- fully observed both bands ------
ax2 = fig.add_subplot(gs[1])
ax2.scatter(f106_true - f158_true, f158_true, **TRUE_KW)
ax2.scatter(f106_obs - f158_obs, f158_obs,
            color=SURVEY_COLORS["roman"],
            label=f"Observed (N={int(roman_obs_ok.sum())})",
            **OBS_KW)
ax2.set_xlabel(r"$F106_{\rm obs} - F158_{\rm obs}$ (Roman DC2, AB)", fontsize=12)
ax2.set_ylabel(r"$F158_{\rm obs}$ (Roman DC2) [mag]", fontsize=12)
ax2.set_title("Roman DC2", fontsize=13, fontweight="bold")
ax2.set_xlim(-0.5, 2.5)
ax2.set_ylim(29.0, 13.0)
ax2.legend(fontsize=9, markerscale=1.5)
ax2.tick_params(labelsize=10)

# -- CMD 3: cross-survey (g_LSST - F158_Roman) vs F158 -----------------------
ax3 = fig.add_subplot(gs[2])
ax3.scatter(g_true - f158_true, f158_true, **TRUE_KW)
ax3.scatter(g_obs_both - f158_obs_both, f158_obs_both,
            color=SURVEY_COLORS["cross"],
            label=f"Observed (N={both_det.sum()})",
            **OBS_KW)
ax3.set_xlabel(r"$g_{\rm LSST} - F158_{\rm Roman}$ [mag]", fontsize=12)
ax3.set_ylabel(r"$F158$ (Roman DC2) [mag]", fontsize=12)
ax3.set_title(r"Cross-survey (LSST $\times$ Roman)", fontsize=13, fontweight="bold")
ax3.set_xlim(-0.5, 3.5)
ax3.set_ylim(29.0, 13.0)
ax3.legend(fontsize=9, markerscale=1.5)
ax3.tick_params(labelsize=10)

fig.suptitle(
    rf"Mock stellar stream -- LSST yr4 + Roman DC2 "
    rf"| age=12 Gyr, Z=0.0006, $\mu$={DIST_MOD} (~22 kpc) "
    rf"| RA 52-55 deg, Dec -41.5 to -38.5 deg",
    fontsize=10, y=1.03,
)

plt.savefig("multisurvey_cmd.png", dpi=150, bbox_inches="tight")
plt.show()
print("Figure saved.")

Roman DC2 F158-detected:         1163
Roman DC2 obs-colour valid (both bands finite): 1163
../_images/04f958a57976d80c110dce27c0f0aa15702dc77967b754ed6e80943f24d5b5f0.png
Figure saved.

Summary#

The multi-survey injector produced the following output column names:

Survey

Band

True column

Observed column

LSST yr4

g

lsst_g_true

lsst_yr4_g_obs

LSST yr4

r

lsst_r_true

lsst_yr4_r_obs

Roman DC2

F106

roman_F106_true

roman_dc2_F106_obs

Roman DC2

F158

roman_F158_true

roman_dc2_F158_obs

Detection flags:

  • lsst_yr4_flag_observed — passed LSST completeness + photo-error cut

  • roman_dc2_flag_observed — passed Roman DC2 F158 completeness + detection efficiency

Roman DC2 CMD colour axis: uses roman_dc2_F106_obs − roman_dc2_F158_obs (fully observed). Stars where the noisy F106 flux went negative are stored as "BAD_MAG" and excluded; the observed colour sample is a subset of roman_dc2_flag_observed stars.
