Selection-Function Derivation Methodology

This technote documents how the streamobs survey selection-function products are derived from an image-level survey simulation: the stellar detection-and-classification completeness, the galaxy misclassification rate, the photometric-error model, and the magnitude-limit (depth) maps, together with the conventions that tie them together.

It is written survey-agnostically. The products it describes were first derived for Roman from the Roman–Rubin DC2 mock (see Roman DC2 Survey Files), and the same recipe is intended to be re-applied to re-derive the LSST and DES products self-consistently. Per-survey numbers (depths, bands, extinction coefficients, saturation) live on the per-release data pages; the method lives here.

What streamobs needs

For each survey/release, the injector consumes a small set of tabulated products, all keyed to a single internal depth convention so they can be applied at any sky position and translated between footprints of different depth:

Product	File pattern	Drives
Stellar completeness vs delta_mag	*_stellar_efficiency_cut<band>.csv	detection + classification probability
Photo-error (sample) vs delta_mag	*_photoerror_<band>.csv	the magnitude noise draw
Photo-error (catalog) vs delta_mag	*_photoerror_<band>_catalog.csv	the reported error / S/N cut
Magnitude-limit (depth) maps	*_maglim_<band>_nside<N>.fits.gz	the local depth at each pixel
Galaxy misclassification vs delta_mag	*_galaxy_misclass_cut<band>.csv	stellar contamination (derived; future-consumed)

The unifying variable is

delta_mag = mag_true − maglim(pixel)

i.e. magnitude relative to the local 5σ depth. Tabulating against delta_mag rather than absolute magnitude makes every curve portable across regions (and surveys) of different depth, under the single assumption that the selection function depends on magnitude only through the local depth. Maps and tables are released in one convention (see Depth maps below); substituting a shallower or deeper map translates the curves to the corresponding depth.

Header spelling note. The completeness CSV column is named classification_eff. The loader also accepts the legacy misspelled classifiction_eff column name for older/Zenodo data packages that pre-date this correction.

Column namespacing. True-magnitude columns use the survey name only (roman_F158_true; true mags are release-independent), while observed/error/flag columns use the full {name}_{release} namespace (roman_dc2_F158_obs, roman_dc2_flag_observed), so multiple releases can coexist in one catalog.

The matched detection→truth catalog

Every product below starts from a matched detection→truth catalog: one row per catalog detection, carrying the truth payload (true magnitudes, the star/galaxy label, the truth ID) for the true object it was matched to. The truth side is what makes the products validated rather than merely measured — see Validation & audits.

The matching recipe (following the source simulation’s own prescription, e.g. Troxel et al. 2023 for Roman):

1. Detect + photometer on the simulation’s detection image (for Roman, a multi-band median coadd), producing a per-tile detection catalog with positions, mag_auto/magerr_auto per band, shape moments, flags, and a scalar star/galaxy score.

2. Positionally match each detection to truth objects within a fixed radius (1″); where several qualify, take the closest in magnitude among the nearest few — a detection-centric match that assigns a blend to its single dominant source, keeping the observed↔true magnitude relation clean at the cost of under-counting blend members.

3. Tag the analysis selections used downstream (see next).

This per-tile positional join is the tractable, parallelizable core; the heavy single-epoch index files are not needed for catalog-level selection functions. For the practical Roman recipe (file formats, tile layout, schema), see the [combine plan archived in artifacts/roman_hlwas/roman_dc2_combine_plan.md].

Analysis selections

Three selections define the sample the products are measured on:

1. flags == 0 — drop any detection carrying a SExtractor flag (blends, edges, saturation, contaminated photometry). This is the cut an observer applies to obtain a pure sample; it is the origin of the bright-end completeness plateau below unity (a fixed fraction of bright stars are flagged because they are blended with a neighbour), which is a property of the adopted cut, not the instrument.

2. true S/N > 5 in the reference band. Detection is treated as single-band: a source is “detected” when its forced reference-band photometry reaches a true S/N > 5. Because reported errors can underestimate the real noise (see Photo errors), the threshold on the reported error is set using a truth-measured error inflation factor rather than the nominal magerr = 2.5/ln10/5 ≈ 0.2171.

3. a positional match to a true object.

The S/N > 5 cut is owned by the efficiency curves. It is baked into the selection-function products at derivation time. The injector must not re-apply a reference-band S/N cut on top of them — doing so would double-count the detection probability.

Why the curves are measured on the detected population (validated 2026-07)

The injector draws the detection flag (from the efficiency curves) and the photometric noise (from the photo-error curves) independently. Under that architecture the curves must describe the population they are applied to — the S/N > 5-detected one — and this convention was validated quantitatively against the alternatives on both the Roman and LSST DC2 matched catalogs:

• Feeding the unconditioned (“no-cut”) error curve instead inflates the detected population’s photometric scatter by up to +0.24 dex (Roman) / +0.34 dex (LSST) near the survey limit, and produces “detected” objects whose implied errors exceed the S/N = 5 threshold — objects that cannot exist in a real catalog (100% of the faintest detected bin).

• A correlated per-object error draw (detection made deterministic given a drawn reported error) was prototyped and not adopted: the naive one-factor noise model deviates from the real detected scatter by 0.16–0.21 dex, and closing that gap requires additional calibrated products with no guaranteed gain over the present convention, which matches the detected population by construction.

• The same conditioning applies to every curve the injector evaluates for detected objects: classification_eff and the galaxy-misclassification curve keep detection in their denominators (removing it changes nothing brightward of the maglim — < 0.015 — and biases the faint tail, where the conditional correctly rises for the well-measured survivors of a hard S/N cut).

The supporting analysis lives in the local evidence notebooks (roman_photoerr_detection_correlation / lsst_photoerr_detection_correlation, built by the gitignored build_photoerr_correlation_nb.py generators).

Known, unmodeled photometric bias of the DC2 mock. The Roman DC2 MAG_AUTO photometry is systematically fainter than truth for detected true stars — median (obs − true) grows from +0.10 mag at delta_mag = −8 to +0.43 mag at delta_mag ≈ −0.4 (SExtractor aperture flux loss; the LSST DC2 PSF photometry control is unbiased at < 0.006 mag over the same range). No product models this offset: flight Roman photometry will be PSF-based, so it is treated as a mock artifact. Corollary: injected observed magnitudes should not be compared against raw DC2 MAG_AUTO CMDs without accounting for the offset, and the Roman products should be re-derived from PSF photometry when it becomes available (expect a slightly smaller error-inflation factor and ~0.1–0.2 mag deeper truth-anchored depths).

Star classification: the single-band size envelope

Rather than a scalar class_star/extendedness threshold, stars are classified with a single-band size envelope. A detection is a star iff

lower(mag) < size_sb < upper(mag)

where size_sb = √λ₁ · 3600″ is the windowed semi-major axis (larger eigenvalue of the per-band windowed second-moment matrix). The single-band second moments are used because detection runs on a combined image, so the combined-depth awin_world / class_star are not single-band quantities — and a single-band morphology is what an injected single-band stream star can be tested against.

Working in L = log10(size), the band is symmetric about the per-magnitude stellar locus L0(mag) with half-width Δ(mag) (dex). Δ(mag) is tuned per magnitude bin to a fixed purity target (0.875, the DES Y6 0≤EXT_XGB≤1 “complete” stellar operating point of Bechtol et al. 2025), capped at the bright end by the stellar log-size scatter (N_SIG · σ_L), forced single-peaked, PCHIP-splined, and frozen faintward of a freeze magnitude at a fixed log offset — so the selection stays as complete as possible past the magnitude where size no longer separates stars from galaxies, rather than tightening into the noise. The upper boundary additionally flares toward bright magnitudes to retain bright, slightly-resolved stars whose measured size scatters above the locus.

The envelope reaches the same purity/completeness as a per-magnitude-optimized scalar threshold while needing only the single reference band, and clearly beats a fixed scalar cut whose purity falls away at the faint end.

One source of truth. The classifier is implemented once, in scripts/roman/roman_star_classifier.py (build_env_classifier), and imported by both the selection-function generator and the galaxy-misclassification builder, so the two cannot drift. Re-deriving for another survey means re-fitting this same envelope on that survey’s matched catalog.

Galaxy misclassification

Stellar contamination is characterized with the same classifier: among true galaxies that are detected and compact (size below a fixed threshold, default 0.3″), the fraction misclassified as stars, in bins of delta_mag. The compact-size input is a single swappable knob (SIZE_SOURCE): the interim proxy is the measured reference-band size; the upgrade is a true galaxy size joined from the parent extragalactic catalog (for Roman/DC2, cosmoDC2 size_true by cosmodc2_id — see the hook in build_roman_galaxy_misclass.py). The builder also saves a merged LSST↔Roman table (truth + observed columns from both surveys, namespaced by origin) for downstream background-distribution and matched-filter work. The misclassification curve is a derived product; the injector does not yet consume it (a future PR will add background distributions + matched-filter maps).

Example (Roman DC2): true-star detection and classification efficiency with the misclassification rate of detected compact (<0.3″) true galaxies on the same axes — below 1% brighter than F158 ≈ 25.5, rising to ~5% toward the faint end.

Photometric errors

Because the truth is available, the reported photometric uncertainties are validated directly: for true stars, the scatter of (observed − true) magnitude should match the reported magerr. When it does not — for the Roman DC2 mock the truth-based scatter runs a flat factor ≈2 above the reported errors in every band, the signature of underestimated correlated noise in resampled median coadds — the error model is built from the truth-based scatter, not the reported errors.

streamobs uses a two-curve error model (Survey.get_photo_error):

• sample curve (*_photoerror_<band>.csv) — the truth-based scatter of (obs − true); drives the noise draw applied to injected magnitudes.

• catalog curve (*_photoerror_<band>_catalog.csv) — the median reported error; written as the catalog magerr and used for the S/N cut.

Both tabulate log10 σ against delta_mag. The sample population is true stars that pass the star classification — the population an injected stream star follows. (An observationally star-classified sample would be galaxy-dominated at the faint end and inflate the apparent scatter.)

Afterburner (manual cleanup, saved)

Binned statistics carry small-sample scatter in the last few faint bins (reversals, spikes) that should not propagate into the runtime curves. The generator therefore applies a lightweight afterburner:

1. Raw curves (*_raw.csv) — unmodified binned outputs — are written every run as a provenance record.

2. Corrections are loaded from a tracked YAML (scripts/roman/roman_photoerror_corrections.yaml) so every manual edit is attributed and reversible. The implemented rule, clamp_faint, floors log_mag_err to a fixed value for all bins at/beyond a chosen delta_mag_min (e.g. holding the faint-end noise at its last well-sampled value instead of letting it wobble).

3. Cleaned curves (the runtime filenames the config points at) — raw with corrections applied.

To adjust the cleanup, edit the YAML and re-run; the raw files preserve the underlying measurement.

Depth maps

Per-band magnitude-limit maps are computed on a HEALPix grid (ring; nside 1024 is a common build resolution, though every current release ships degraded to nside 128) with the desqr recipe:

1. cut the bright end and mag < 30;

2. estimate the global slope of log10(magerr) vs mag from nearest-neighbour pairs (KDE peak of the pairwise ratio);

3. per object, extrapolate to the magnitude where it would reach the threshold S/N (magerr = 2.5/ln10/snr);

4. take the median per pixel;

5. fix the absolute scale — a per-survey choice. Steps 1–4 already solve for the magnitude where the reported magerr reaches the threshold S/N; that is the desqr machinery’s own native output. Whether the map ships on that native scale, or is shifted to a truth-based reference, is decided per survey by how optimistic its reported errors are:

   • Native (reported-error) scale, no shift — adopted for LSST DC2, whose reported errors are only ≈1.4× optimistic. This matches what a real survey gives you (the pipeline’s own quoted depth is all there is), so sims and data are treated identically. The rebuilt native-scale depth reproduces an independent external calibration (Tsiane et al. 2025) to 0.1% with no shift (median ratio 1.0011 over delta_mag ∈ [-5, -0.25]; it was 1.335 before this map was de-anchored) — the validation that grounds this choice. Under this policy the CATALOG curve is the one that evaluates to σ = 0.217 (S/N = 5) at delta_mag = 0 by construction; the larger true scatter there is carried by the SAMPLE curve instead.

   • Truth-anchor — shift the map so its median lands at the magnitude where the truth-based scatter of (obs − true) reaches S/N = 5 — adopted for Roman DC2 (see Roman DC2 Survey Files), whose reported errors are ≈2× optimistic. Left on the native scale, Roman’s map would land ≈0.9–1.2 mag deeper across bands than the published Roman 5σ depths (e.g. F158 native 27.83 vs. the ~26.9 reference), claiming detections the survey cannot deliver. Under this policy the SAMPLE curve is the one that evaluates to σ = 0.217 (S/N = 5) at delta_mag = 0 by construction (measured 0.2150, ≈1% off target); the CATALOG curve reads well below it, reflecting the same optimism.

   The desqr machinery always supplies the (error-factor-immune) spatial structure; the two policies differ only in what supplies the absolute depth. The divergence is a property of each simulation’s own error calibration, not of the convention itself — a survey with LSST-like reported errors keeps the native scale, a survey with Roman-like reported errors gets truth-anchored.

The depth sample is the same true-star-passing-classification population as the photo-error model, so the maps and the error model describe one population.

Anchor-sample footnote (2026-07, Roman-specific — LSST DC2 no longer anchors, so this does not apply there). The anchoring in step 5 is conceptually a no-cut quantity (the magnitude where the full population’s truth scatter reaches S/N = 5), but the current generator’s anchor sample includes the detection cut. The measured effect is ≲ 0.01 mag (the no-cut sample curve crosses S/N = 5 at delta_mag = +0.008 instead of exactly 0) — far below the 0.25-mag depth binning — so the fix (dropping det_ok from the anchor sample) is deferred to the next product regeneration rather than regenerating for it.

Exposure-scaled quasi-depth (Option B)

When a survey footprint has no full image simulation but does have an exposure-time map (e.g. the real Roman HLWAS tiers), depth is obtained by scaling the reference depth by photon-noise √t S/N:

depth(pix) = REF_DEPTH + 1.25 · log10( t(pix) / REF_EXPTIME )

where REF_DEPTH is the median of the reference maglim map — for Roman this is the truth-anchored DC2 F158 map (Roman keeps truth-anchoring; see Depth maps above) — and REF_EXPTIME is the reference simulation’s per-pixel exposure time. The 1.25 factor is 2.5 × 0.5, the limiting-magnitude response to √t. This Option B ties all tiers to the same reference (not to per-tier ETC depths of mixed vintage), so the maps land exactly on the depth scale the delta_mag-keyed tables require, and inter-tier comparisons are self-consistent. It assumes background-limited exposures (read-noise makes the shortest exposures slightly shallower than predicted). A survey whose DC2-equivalent calibration sits on the native (non-anchored) scale instead — like LSST DC2 — would tie Option B to that native reference in the same way; the recipe itself doesn’t care which policy set REF_DEPTH, only that it’s applied consistently across tiers.

Validation & audits

Already validated (this PR)

• Truth-based photo-error validation. The reported errors are checked against the scatter of (obs − true) for true stars per band. The sample photo-error curve is always built from this truth-based scatter, for both surveys. Whether the depth map is also truth-anchored is the per-survey choice above: the constant ≈2 discrepancy in the Roman DC2 mock is large enough to overshoot Roman’s external reference depth on the native scale, which is why its depth map is truth-anchored; the ≈1.4× LSST DC2 discrepancy is small enough that its native-scale map reproduces an external calibration (Tsiane et al. 2025) to 0.1%, so its map is not anchored. Figure: error_validation.png on Roman DC2 Survey Files.

• Depth-map validation notebook (notebooks/roman_depth_validation.ipynb, figures under _static/roman_depth_validation/; Roman-specific — Roman DC2 remains truth-anchored, LSST DC2 does not, see above). It confirms:

  • DC2 band ordering matches the expected physics: F129 ≈ F158 (26.375), F106 = 26.279 < F158, F184 = 25.347 < F106. ✓

  • DC2 4-band truth-anchored medians 26.28 / 26.38 / 26.38 / 25.35 (F106/F129/F158/F184) with tight 16/84 spreads (≈±0.03 mag).

  • HLWAS Option-B medians match the formula to <0.001 mag: wide 26.2842 (expected 26.2840), medium 26.2894, all 26.2894 — confirming the maps are on the DC2-relative convention the shared tables need.

  • Tier consistency in the triple-overlap region: all ≥ medium and all ≥ wide hold for 100% of pixels.

  • Footprint coverage: DC2 ≈ 16.4 deg² (fsky 4×10⁻⁴); HLWAS wide 3372 deg², medium 2882 deg², all 5878 deg².

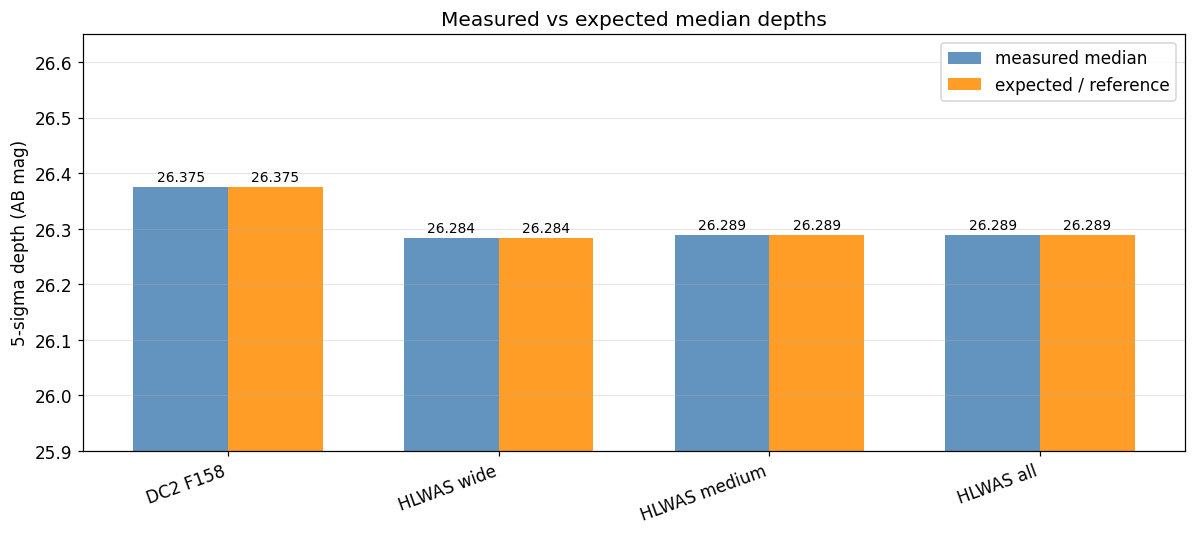

  HLWAS measured map medians vs the Option-B predicted depths: agreement to <0.001 mag confirms the maps are on the DC2-relative convention the shared tables require.

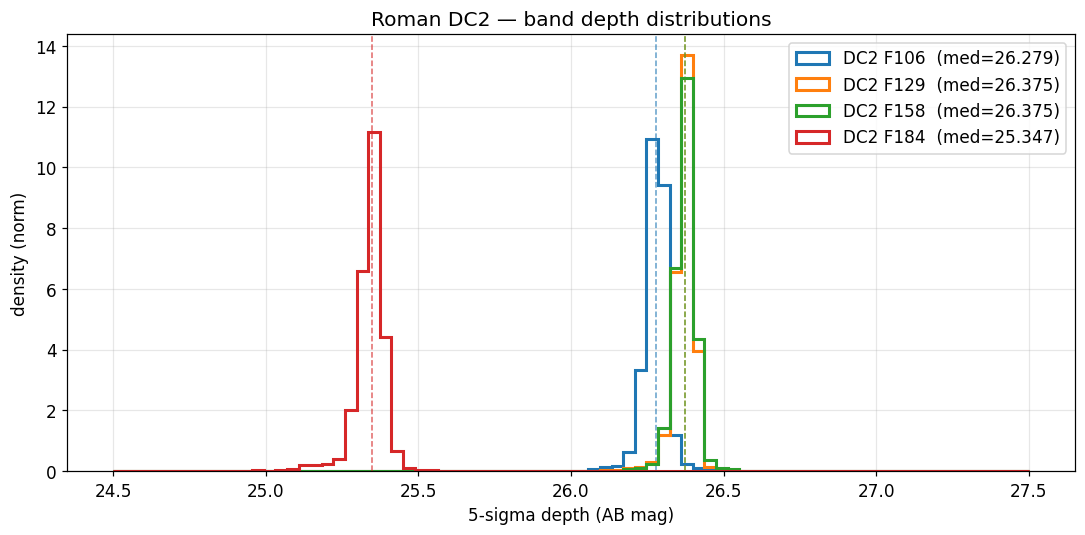

  DC2 per-band truth-anchored depth histograms (nside=1024); the tight spreads and the band ordering F184 < F106 < F129 ≈ F158 match the expected physics.

• LSST DC2 native-scale depth validation (headline result, 2026-09). With truth-anchoring removed, the LSST DC2 r-band map median moved from 26.517 (previously truth-anchored) to 26.846 (native reported-error S/N=5; g-band 26.972). On the detected population the curves are applied to (see Why the curves are measured on the detected population above), the rebuilt CATALOG curve reads σ = 0.1800 at delta_mag = 0 and the SAMPLE curve 0.1625. Note the curve value at delta_mag = 0 is not 0.217 and is not expected to be: “the pipeline calls 0.2 here” is a statement about the map, while the curve reports the median error of the S/N>5-selected sources that survive there, from which the noisy tail is genuinely absent. Compared against the independent external calibration of Tsiane et al. (2025), the rebuilt native-scale CATALOG curve matches to 0.1% (median ratio 1.0011 over delta_mag ∈ [-5, -0.25]) with no shift applied — versus a ratio of 1.335 under the old truth-anchored convention. This is the evidence that grounds keeping LSST DC2 on the native pipeline scale (contrast with Roman DC2, which remains truth-anchored — see Depth maps above). Efficiency vs. true magnitude is unaffected (identical detection+classification efficiency at r = 24/25/25.5/26/26.5: 0.7177/0.5667/0.5032/0.4428/0.3381) — only the delta_mag zero point moved.

• Test suite. tests/test_roman.py (26 tests) covers loading each Roman release, {name}_{release} column namespacing on inject, Vega→AB offsets, the two-curve photo-error model, completeness behaviour (bright ≳ plateau, zero below saturation), and the legacy classifiction_eff misspelled-header fallback. tests/test_surveys.py registers roman/dc2 + the three HLWAS tiers in SURVEY_REGISTRY (skipped gracefully if a config is absent).

Reference benchmarks to check against (external truth)

These are the published/derived numbers a re-derivation should reproduce. The first two are external Roman benchmarks from Troxel et al. 2023 and are listed as audit targets (not yet measured in-repo):

• Detection completeness: ≈ 98.9% of r < 29 stars detected at S/N > 5 before flag cuts (Troxel et al.). Our flags == 0 plateau sits at ~0.91 by design (the flagged-blend fraction); the pre-flag detection rate should approach the Troxel figure.

• H158 80%-completeness cutoff ≈ 25.42 (Troxel et al.) — the combined detection×classification curve should cross 80% near this magnitude at reference depth.

• 5σ point-source depths ~26.9 (F106/F129/F158) / 26.2 (F184) AB (reference HLIS). The truth-anchored mag_auto depths come out ~0.5–0.85 mag brighter (26.38…) because they describe what catalog mag_auto delivers in true-magnitude space, not optimal-PSF photometry — this gap is expected and documented, not a bug.

Recommended quantitative audits (future)

Concrete checks to run on the streamobs implementation (not the derivation). All are cheap relative to the derivation and would tighten confidence in the injector:

1. Injection round-trip / luminosity-function recovery. Inject a stream with a known input luminosity function into a release, run the recovered catalog back through the same completeness curve, and confirm the recovered LF matches the input × completeness within Poisson error. Status: recommended.

2. Detection/classification efficiency vs benchmarks. Measure the injected-then- recovered detection and classification efficiency vs true magnitude and compare to the Troxel benchmarks above (pre-flag detection ≈ 98.9% at r<29; H158 80% ≈ 25.42). Status: recommended.

3. Photo-error closure. Inject stars at known true magnitudes, measure the scatter of (recovered − true), and confirm it reproduces the input *_photoerror_<band>.csv sample curve as a function of delta_mag. Status: recommended.

4. Cross-survey recovery on a common stream. Inject one synthetic stream into both a Roman release and an LSST release and compare recovered surface densities / selection in the overlap, to confirm the two selection functions are mutually consistent once both are re-derived by this methodology. Status: recommended (gated on the LSST re-derivation).

5. Convention closure (non-circular). The depth-validation notebook’s “convention check” currently re-derives the expected value from the same formula used to build the map (circular). A real check would compare the truth-anchored DC2 F158 median (Roman DC2 remains truth-anchored — see Depth maps above) against an independent depth estimate (e.g. the count-turnover magnitude of the matched catalog) and confirm agreement. Status: recommended. (The equivalent check for LSST DC2’s native-scale map is already done — see the Tsiane et al. 2025 comparison above, an independent external calibration, not a self-derived one.)

When the classifier cannot be evaluated on the simulation

The recipe above assumes the survey’s star classifier can be recomputed on the simulated sources. That assumption fails for the DECam surveys: DES Y6 Gold’s EXT_XGB needs three features that are never measured for injected sources, so it cannot be run on Balrog at all — and the classifier is precisely what classification_eff is supposed to describe.

The general remedy, when the real catalogue carries the classifier output and the simulation carries the truth label, is to bridge them through the features they share:

1. Train a surrogate for the classifier on the real catalogue, restricted to features constructible identically in both places.

2. Measure the surrogate’s per-magnitude confusion against the real classifier, a(m) = P(S=1 | selected) and b(m) = P(S=1 | not selected), and deconvolve the simulation-measured efficiency, eff = (eff_S - b) / (a - b), so the shipped curve describes the real classifier rather than the surrogate.

Two things decide whether this is trustworthy, and both are cheap to measure before committing to it: how much of the missing feature is reconstructible from the available ones, and whether the feature distributions actually agree across the two catalogues (a feature that is systematically offset between train and apply domains must be dropped, however informative it looks).

See Selection functions from Balrog (DECam surveys) for the worked DES/DELVE case, including the numbers.

Re-deriving for another survey

To re-derive LSST/DES products self-consistently:

1. Build the matched detection→truth catalog for that survey (same positional-match recipe, that survey’s bands).

2. Re-fit the size envelope (roman_star_classifier.build_env_classifier) on the new catalog — same purity target and freeze logic.

3. Re-measure the two photo-error curves (the sample curve is always built from the truth-based scatter). For the depth map, compare the native (reported-error) S/N=5 median against an independent external reference depth for that survey: keep the native scale if they agree, as for LSST DC2 (reported errors only mildly optimistic); truth-anchor to the truth-based S/N=5 magnitude if the native scale would overshoot the external reference by a large margin, as for Roman DC2 (reported errors ≈2× optimistic). Clean the curves via the YAML afterburner.

4. Emit the delta_mag-keyed completeness / photo-error CSVs and the maglim maps — truth-anchored or left on the native scale, per the choice made in step 3 — in the shared convention (use the classification_eff column header).

5. Register the release in config/surveys/ and SURVEY_REGISTRY, and add a thin per-release data page that references this methodology page for the “how”.
