Roman DC2 Survey Files

This page is the data sheet for the roman / dc2 release: the survey-specific numbers, products, and figures. For how these products are derived (the matched detection→truth catalog, the size-envelope classifier, the two-curve photo-error model + afterburner, the truth-anchored depth maps, the analysis selections), see the survey-agnostic :doc:selection_function_methodology.

The simulated survey

All quantities are measured from the Roman–Rubin DC2 synthetic survey of Troxel et al. (2023): ~20 deg² of image-level simulations of the Roman High Latitude Imaging Survey reference design at full depth, reaching a 5σ point-source depth of ~26.9 AB in the F106/F129/F158 bands and 26.2 AB in F184. Stars are drawn from a Galfast model of the Galaxy and galaxies from the cosmoDC2 extragalactic catalog. Object detection and photometry are performed with SExtractor on a median F106+F129+F158+F184 coadd detection image (segmentation at 2.5σ, minimum area 5 pixels; deblending DEBLEND_NTHRESH=48, DEBLEND_MINCONT=0.05), with forced photometry per band over 1039 coadd tiles. The recommended catalog-level selection of S/N > 5 in the detection image is applied on top of this. Each tile provides a detection catalog and a truth index of every simulated object with its position, four-band magnitudes, and a star/galaxy label.

The matched detection→truth catalog is built by scripts/roman/build_roman_dc2_det_truth.py; its construction (the per-tile 1″ positional match, the flags == 0 + true-S/N>5 selections) is described in the :doc:selection_function_methodology. The measured F158 error inflation factor is 1.59, so the true-S/N>5 cut is set at reported magerr_auto_H158 < 0.137, keeping 69% of the catalog.

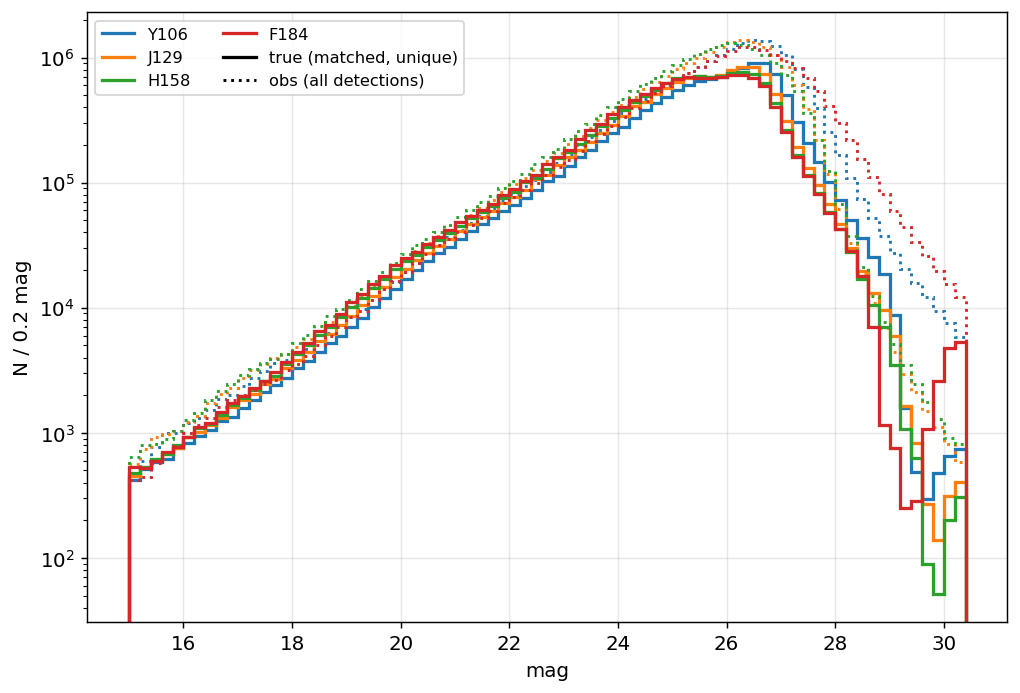

Number counts (color = band): solid — true magnitudes of matched sources; dotted — observed mag_auto of all S/N>5 detections. The turnover at ~26–26.5 reflects the survey depth.

Stellar completeness and classification

roman_stellar_efficiency_cutf158.csv gives, in bins of true F158 magnitude for true stars: detection_eff (fraction with a clean true-S/N>5-in-F158 detection, against the full truth-star denominator), classification_eff (fraction of those detected stars classified as point sources by the F158 size envelope), and classification_detection_eff (their product). The classifier is explained on the methodology page; the loader also accepts the legacy misspelled classifiction_eff column name for older/Zenodo data packages.

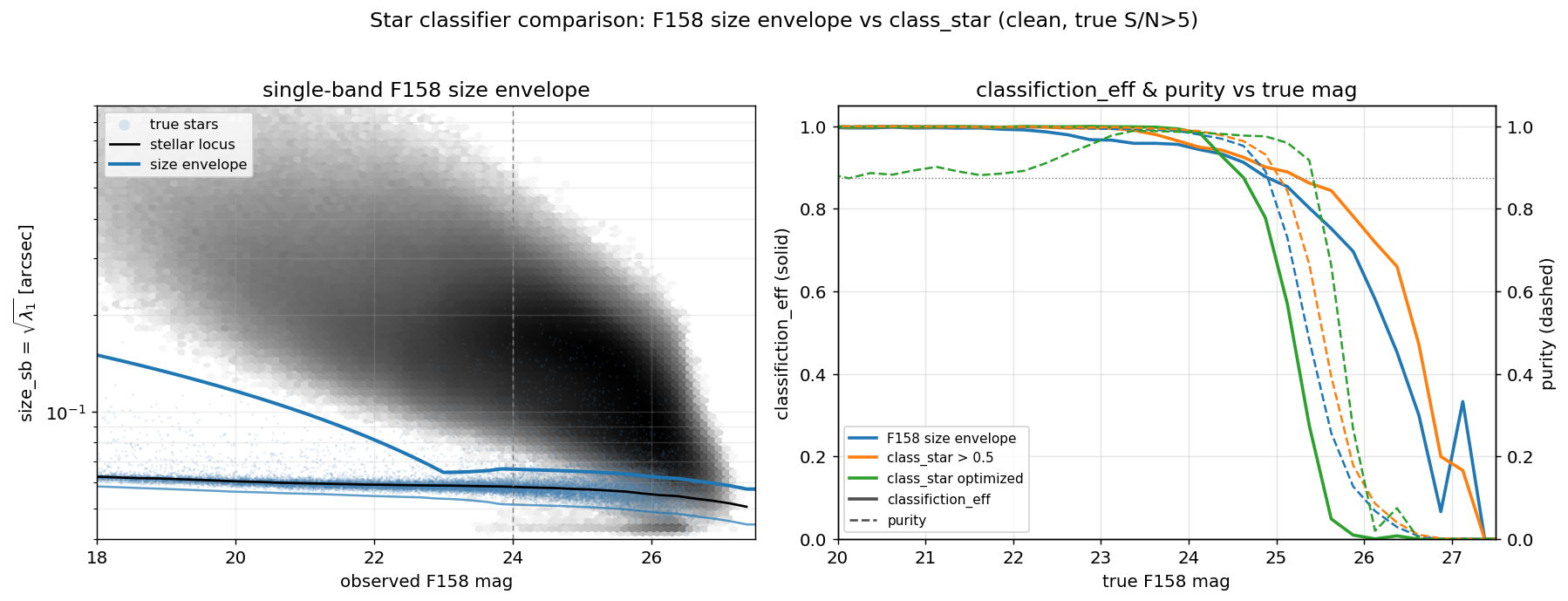

Left: the single-band F158 size–magnitude plane (greyscale: true galaxies; blue: true stars) with the size-envelope boundaries and the freeze magnitude marked. Right: classification efficiency (solid) and purity (dashed) vs true F158 magnitude for the F158 size envelope, the fixed class_star > 0.5 cut, and a per-magnitude-optimized class_star threshold, on the clean true-S/N>5 sample.

The bright plateau sits at ~0.91 (not unity) and is flat with magnitude — the signature of the flags == 0 cut, not depth: of the ~9% of bright (F158 18–21) true stars missing, ~7% are matched but flag-rejected (blends/wings/saturation) and ~3% have no clean detection because the detection-centric match assigned their blend to a brighter source. Detection alone crosses 50% at F158 ≈ 26.2 (≈ the F158 maglim 26.38, as expected for an F158 S/N=5 gate); the combined efficiency crosses 50% at F158 ≈ 26.0 at reference depth.

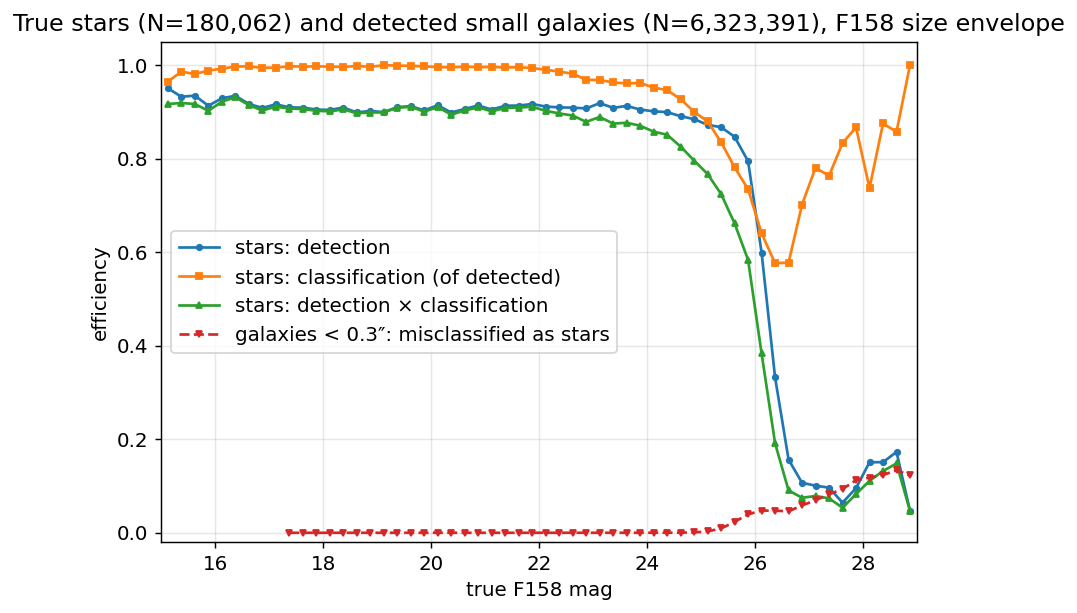

Detection and classification efficiency for true stars, with the misclassification rate of detected compact (<0.3″) true galaxies on the same axes (below 1% brighter than F158 ≈ 25.5, rising to ~5% toward the faint end).

The standalone galaxy-misclassification product (roman_galaxy_misclass_cutf158.csv, columns delta_mag, mag_F158, classification_eff) and the merged LSST↔Roman table (roman_lsst_matched.parquet) are built by scripts/roman/build_roman_galaxy_misclass.py. The compact-galaxy size currently uses the interim measured-Roman proxy (SIZE_SOURCE=measured_roman); the cosmoDC2 true-size upgrade is wired but pending the NERSC size_true fetch.

Photometric errors

The reported magerr_auto underestimates the truth-based scatter of (obs − true) by a flat factor ≈2 in all four bands (underestimated correlated coadd noise), so the error model is built from the truth-based scatter — see the methodology page.

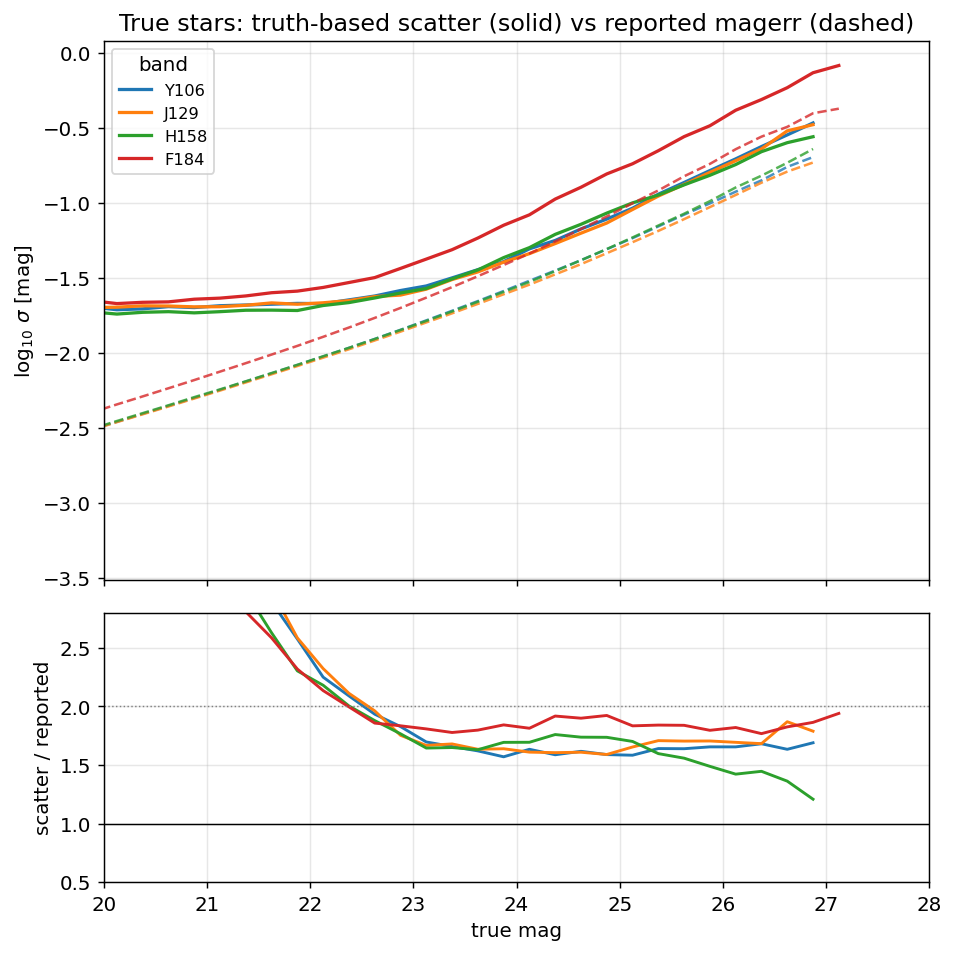

Truth-based scatter (solid) vs median reported magerr_auto (dashed) for true stars per band; ratio ≈2 in every band (lower panel).

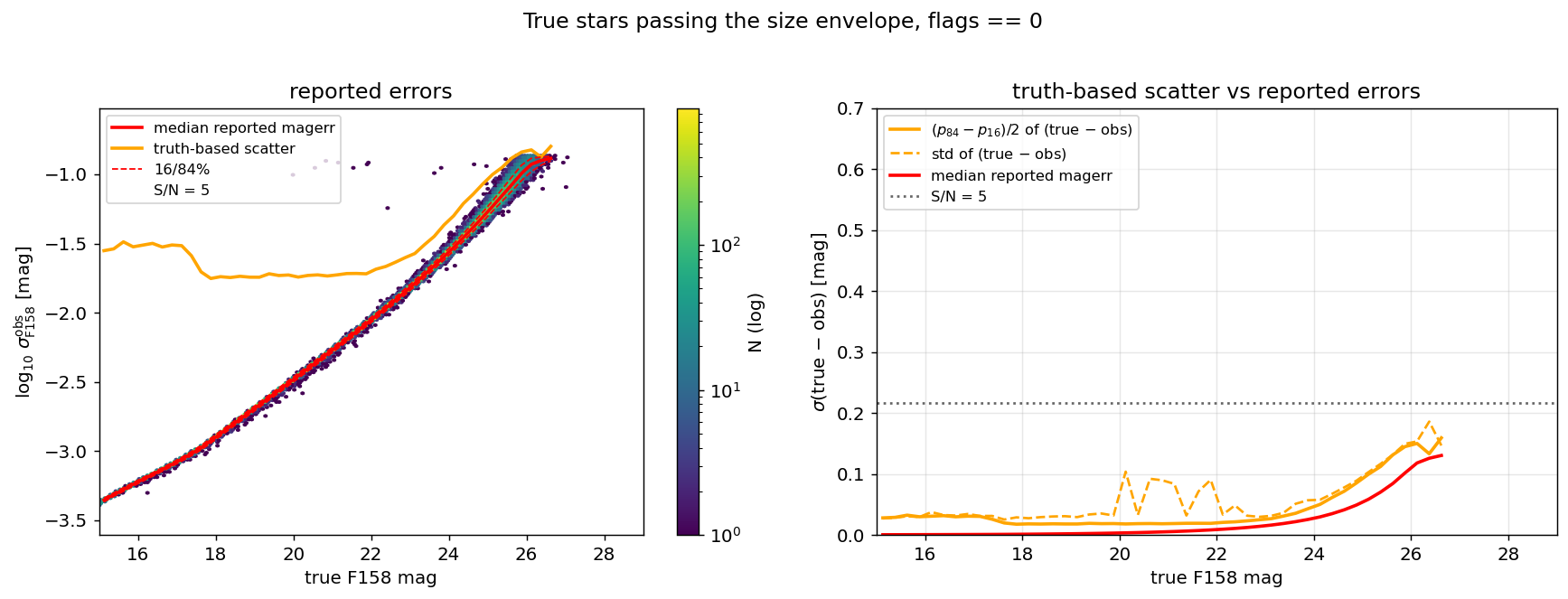

F158 errors for star-classified true stars: reported magerr_auto (red), the truth-based scatter adopted for the model (orange), and the (true − obs) scatter under-covered by the reported errors by ≈2 (right).

The two runtime curves are roman_photoerror_f158.csv (sample / truth-based scatter, drives the noise draw) and roman_photoerror_f158_catalog.csv (median reported magerr, drives the S/N cut). The afterburner corrections live in the tracked config/surveys/roman_photoerror_corrections.yaml:

• F158_sample (clamp_faint): floor log_mag_err to −0.8285 for delta_mag ≥ −0.28 (holds the truth-scatter at its last well-sampled value, σ ≈ 0.148, rather than propagating small-sample noise).

• F158_catalog (clamp_faint): floor log_mag_err to −0.8960 for delta_mag ≥ 0.0 (removes a 0.003-dex reversal in the last bin).

Survey depth

Depth maps are per-band, nside=1024 (ring), via the desqr recipe, then truth-anchored (median shifted to the S/N=5 magnitude of the truth-based scatter). The anchored medians are 26.28 / 26.38 / 26.38 / 25.35 in F106/F129/F158/F184. These sit ~0.5–0.85 mag brighter than the official expected point-source depths (26.9/26.2) because they describe what the catalog’s mag_auto delivers in true-magnitude space, not optimal-PSF photometry.

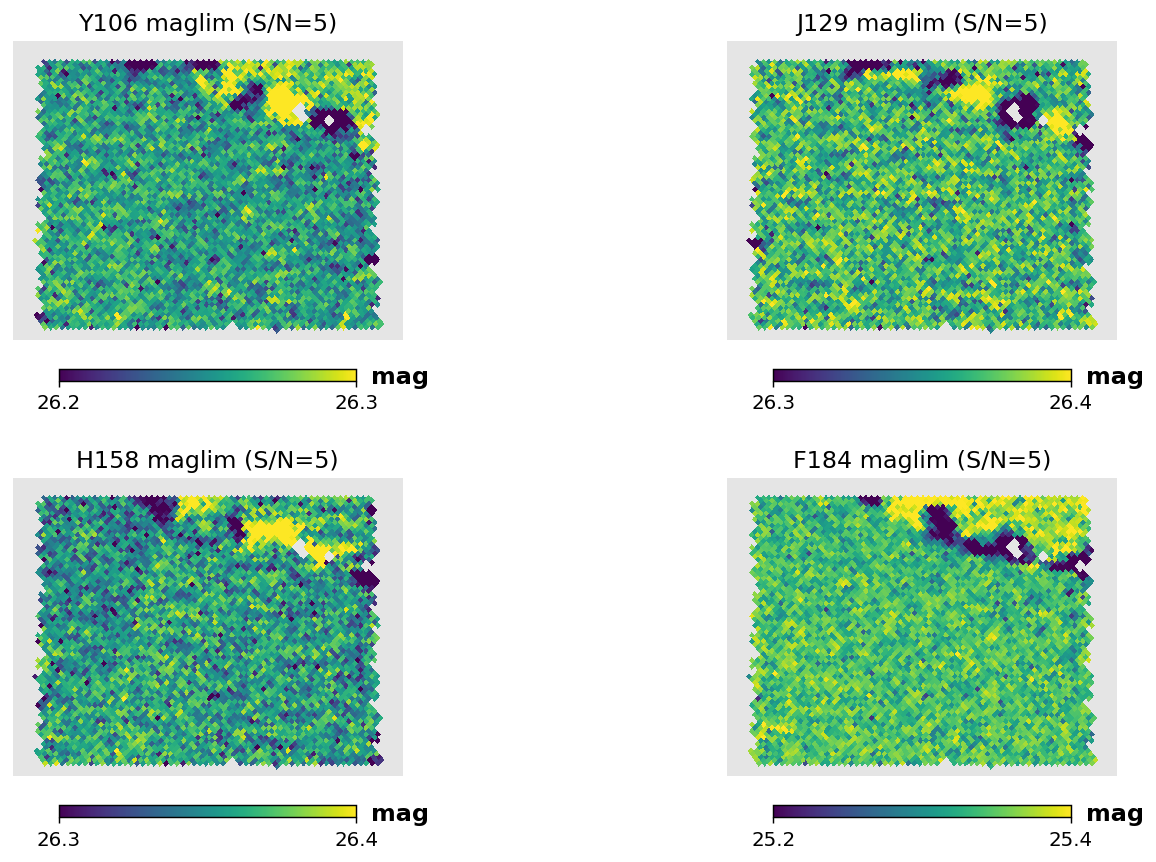

Truth-anchored S/N=5 maglim maps over the DC2 footprint (RA 51–56, Dec −42 to −38).

The delta_mag axes of the completeness and photo-error tables are keyed to the median of the F158 map (26.38), so maps and tables share one convention. A map for a different footprint (e.g. the exposure-scaled HLWAS tiers, :doc:roman_hlwas) must be expressed in this same DC2-relative convention.

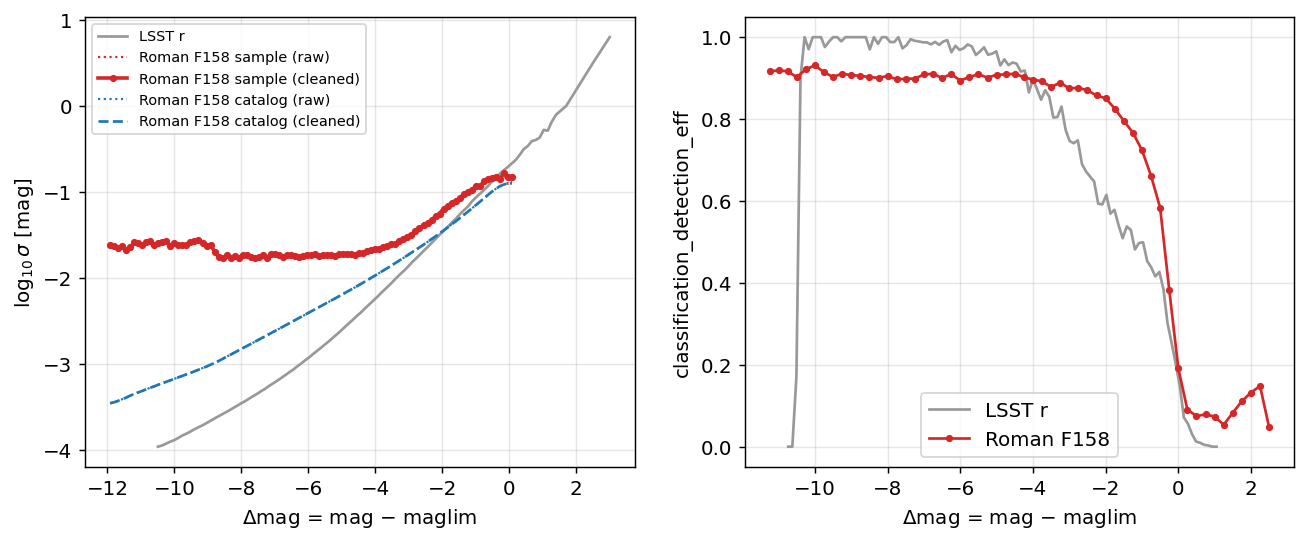

Roman F158 photo-error and combined-efficiency tables vs the LSST r-band tables in the shared delta_mag = mag − maglim convention.

Zeropoints and extinction coefficients

Official Roman WFI AB zeropoints (effective-area curves of 2024-03-01, from the Roman technical information repository; range = detector-to-detector variation WFI01–WFI18):

Filter	AB zeropoint	mean
F106	26.31 – 26.44	26.36
F129	26.30 – 26.47	26.37
F158	26.34 – 26.46	26.39

These agree with Roman-STScI-000825 Table 3 (Z = 26.3546/26.3531/26.3760, σ_Z ≈ 0.033–0.038). The mock’s photometry is calibrated greyly; measured offsets are +0.11/+0.10/+0.12 mag in F106/F129/F158. F184 needs an underived chromatic correction and is excluded (it is also deep-tier-only in the community-defined HLWAS).

Adopted extinction coefficients are the official STScI values from Roman-STScI-000825 (Sharma, Table 3):

Filter	A_band / E(B−V)
F106	1.1495
F129	0.8497
F158	0.6140

The shape is validated against the mock: the truth dereddening band ratios 1.88 (F106/F158) and 1.37 (F129/F158) match the official ratios (1.87, 1.38) to ~1%. (Absolute amplitudes can’t be cross-checked — the mock omits MW extinction — but A_F158 ≈ 0.01 mag at E(B−V) = 0.013 in typical high-latitude fields.)

Using the survey in streamobs

Configured by config/surveys/roman_dc2.yaml, data in data/surveys/roman_dc2/:

from streamobs.surveys import SurveyFactory
survey = SurveyFactory.create_survey("roman", release="dc2")

maglim = survey.get_maglim("F158", pixel=pix)
completeness = survey.get_completeness("F158", mag, maglim)
photo_error = survey.get_photo_error("F158", mag, maglim)

All tables, maps, and figures are regenerated by scripts/roman/create_streamobs_files_hlwas.py (the matched catalog by scripts/roman/build_roman_dc2_det_truth.py; the galaxy-misclassification product by scripts/roman/build_roman_galaxy_misclass.py; the shared classifier in scripts/roman/roman_star_classifier.py).

The real-footprint HLWAS tiers reuse these DC2-derived tables with exposure-scaled F158 maglim maps — see :doc:roman_hlwas.

Caveats

• The simulation is the reference HLIS design (deeper than the community-defined wide tier); wide-tier behaviour is obtained by translation in delta_mag.

• The detection-centric match assigns a blend to its dominant source, so detection efficiency is slightly conservative for stars blended with brighter neighbours.

• Saturation (pixels clip at ~1.1×10⁵ e⁻) appears brighter than mag ≈ 17 (the classification dip near 16.6 is its signature); stars brighter than 15 are not chromatically rendered. The config sets saturation: 17.0.

• mag_auto carries a systematic offset vs truth (≈ +0.1–0.2 in F106/F129/F158, ≈ +0.6 in F184 at the bright end). The error model captures the scatter about this offset, not the offset itself.

• The detection catalogs are detector-optimistic (the “simple” detector model — read noise, dark current, saturation only; no cosmic rays, persistence, IPC, hot pixels; bright stars unmasked).
