Product verification — des/yr6 and delve/dr3_gold

Verification record for the two DECam Balrog releases as shipped in data.zip. Everything below is reproducible with

python scripts/verify_products.py \
    --release des_yr6=data/surveys/des_yr6 \
    --release delve_dr3_gold=data/surveys/delve_dr3_gold \
    --figdir figs/verification --manifest artifacts/product_manifest.json

Result: 88 / 88 checks pass. Test suite: 370 passed, 2 skipped, 0 failed.

Derivation and methodology are in Selection functions from Balrog (DECam surveys); per-release summaries in DES and DELVE.

What was verified

Group	Checks	What it establishes
MANIFEST	presence + sha256 of every product	the archive is complete and identified
CONTRACT	column names, ranges, clamp, curve orderings, forced-photometry pair	streamobs will read what it expects
DEPTH	each map loads; nside, area, median	the depth maps are what they claim
PHYSICS	anchor, inflation factor, plateau, 50% crossing	the curves are physically sensible
CROSS	DES vs DELVE in delta_mag space	the two releases are mutually consistent

Headline numbers

	des/yr6	delve/dr3_gold
injections	145,724,947	62,922,015
true stars binned	4,488,693	13,141,646
detected / classified	86.7% / 83.6% of detected	63.6% / 85.4% of detected
bands	griz	griz
depth map nside	128	128
footprint	5,340 deg²	17,099 deg²
truth-anchored m5 (g)	25.025	24.373
error-inflation factor	1.464	1.502
bright-end detection plateau	0.999	0.901
combined eff crosses 50% at delta_mag	+0.210	−0.144
star classifier	EXT_XGB (surrogate + deconvolution)	bdf_extended_class_dr3gold
sys_error	0.005	0.005

Truth-anchored depths and the shift applied to each input map’s median:

band	DES m5	shift	DELVE m5	shift
g	25.025	−0.297	24.373	+0.196
r	24.850	−0.280	23.962	+0.287
i	24.402	−0.180	23.389	+0.185
z	23.754	−0.124	22.951	+0.391

Within each survey all four shifts share a sign. That coherence is the check that validates the anchor — a band-dependent sign flip would mean the anchor was tracking the selection rather than the depth, which is exactly the failure mode that ruled out the detected anchor sample for DES (there, g and r moved 1.03 mag in opposite directions). Both releases use anchor_sample: nosnr.

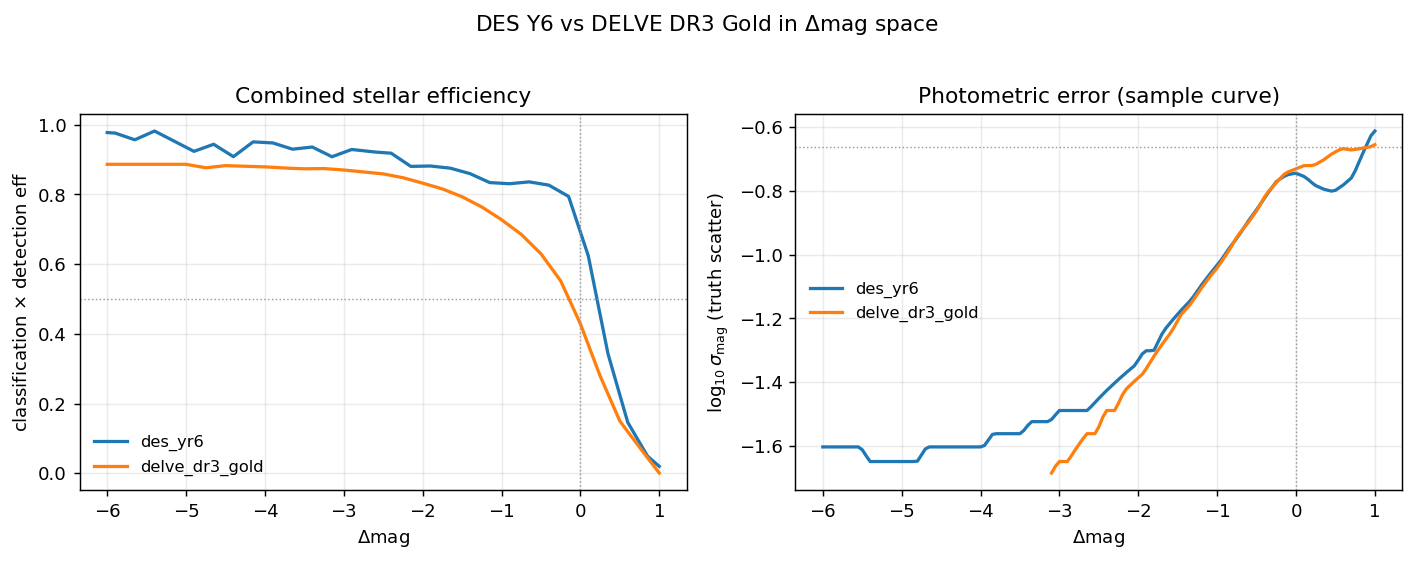

The cross-check

In the DES footprint DELVE DR3 Gold is DES Y6, so the two must agree. They are compared in delta_mag space rather than on the sky, because the sky overlap is only 369 deg² (7.1% of DES) and is edge-dominated. Both are classified by the same bdf_extended_class_dr3gold interpolation nodes, which is what makes the comparison meaningful.

Over −4 < delta_mag < 0:

quantity	median abs. difference	max
combined stellar efficiency	0.063	0.292
photo-error (sample curve)	0.020 dex	—

Regenerate with --figdir; the script writes this figure on every run.

The residual efficiency offset is understood: DES’s bright-end plateau sits at 0.999 against DELVE’s 0.901 because DELVE applies per-object quality flags (meas_flags, meas_bdf_flags) in the efficiency numerator, the Roman/LSST convention. DES’s sparse 20″ injection grid leaves almost nothing flagged (0.056%), so its plateau reaches unity. This is a difference in what the two numerators count, not a disagreement about the surveys.

Findings

Three defects were found and fixed while assembling this release.

DES depth maps were mislabelled nside1024

The four des_yr6_maglim_* maps contained nside-512 data under an _nside1024 filename. The input des_y6_5_sig_*.hsp maps are nside 512 and MaglimMap.to_healpix only ever degrades, so --maglim-nside 1024 was a no-op while the output filename took the requested value regardless.

Nothing was functionally wrong — streamobs reads nside from the map, not the name — but the files would have gone to Zenodo misdescribed. They are renamed so the config, the survey doc and the figure generator were corrected alongside it. The verifier now asserts that a map’s nside matches its filename.

Every release ships at nside 128 (≈27′ pixels), so all surveys share one depth resolution. DES degrades there from its nside-512 HealSparse inputs and DELVE from nside-16384 inputs; neither is upsampled. The mislabelling above is what the check was written for, and it would have caught a request for a resolution finer than the input.

_nocut photo-error curves were missing for both releases

streamobs treats every non-reference band as forced photometry — measured at the reference band’s position, so not conditioned on its own detection — and requires a _nocut photo-error pair measured without the reference-band S/N cut. Neither DECam release shipped one, so any r/i/z photometry raised.

The reducer already computed the no-S/N-cut populations for the depth anchor, so it now accumulates the same two histograms against classified_nosnr and emits *_photoerror_<band>_nocut.csv and *_catalog_nocut.csv alongside the existing pair. Both releases were regenerated; every previously shipped curve, map and audit number reproduced byte-for-byte, so the new curves are a strict addition.

The two pairs behave exactly as the convention predicts: identical brightward of the depth (54 bins for DES, 22 for DELVE agree to within 1e-6), and diverging only faintward, where the S/N cut truncates the detected sample. There the cut curve’s measured scatter turns over and falls while the _nocut curve keeps rising — up to 0.58 dex apart for DES and 0.38 for DELVE. Applying the cut curve to forced photometry would therefore have understated faint-band errors.

Found separately while wiring this up: Survey._resolve_log_photo_error formats its “no _nocut curve” error with self.full_name, which does not exist — the property is namespace. Every release on main ships _nocut curves, so the branch had never been reached; the first survey without them got an AttributeError instead of the intended message. Fixed.

The DELVE photo-error curve was quantisation-limited

The truth-scatter histogram uses 0.005 mag bins, so a binned σ can only take multiples of 0.0025. Brightward of delta_mag ≈ −3.26 the DELVE curve was pinned to that grid — stepping 0.005, 0.0075, 0.010, 0.0125 and flat across several bins at a time — i.e. reporting the bin width rather than the scatter. The original afterburner cut at −5.2 removed only a non-monotonic wiggle and left this region in place, so the curve floored at exactly 0.00500 mag.

The cut moved to −3.25, the first bin whose σ reaches 0.020 — the same floor the cleaned DES curve has. This drops 23 of 64 bins from each DELVE curve and makes sys_error: 0.005 safe on the same footing as DES (3.1% in quadrature). Under the old cut the same term would have been a 41% inflation of a number that was never a measurement.

This supersedes the sys_error open item in the DES handoff, which proposed setting it to zero. Zero would have been the right response to a real 0.005 floor; the floor was an artefact, so the correct fix was upstream in the cut.

Known limitations

Carried forward into the release, not fixed here.

1. DELVE’s efficiency table starts at delta_mag −5.0 (g = 19.375), 3.4 mag shallower on the bright side than DES’s −8.4 (g = 16.625), because brighter bins fall below the 20-star minimum. Stars brighter than g ≈ 19.4 are flat-extrapolated at detection_eff = 0.90.

2. Galaxy misclassification is noise-dominated brightward of delta_mag ≈ −4 in both releases, and has no external validation in either. SPLASH-SXDF cannot supply one: its STAR_FLAG is pure but incomplete, which validates completeness while making contamination unmeasurable.

3. The photo-error curves invert faintward of the depth. For DES the sample curve drops below the catalog curve in 5 bins over delta_mag +0.24 to +0.72. This is the detected-population effect described in the methodology doc — beyond the 50% crossing only objects that scattered bright are recovered, compressing the measured scatter while the reported error keeps rising. The verifier asserts the ordering only for delta_mag ≤ 0 and reports the inversion range.

4. EXT_XGB is not computable on Balrog. DES ships a trained surrogate plus a per-magnitude deconvolution; DELVE ships the exactly-reproducible bdf_extended_class_dr3gold selection instead, which is a different selection from an EXT_XGB cut on the real catalogue. No DELVE surrogate is shipped.

5. DELVE has no external validation of its star classification, unlike the SPLASH-SXDF check done for DES, and no truth catalogue overlapping the footprint can supply one.

Manifest

data.zip — 24,613,885 bytes, 126 files sha256 6dc3578ecfbfcf53af6e43a792b3170f0a09e187d0a63fe8d70b10cbdb8b2e0b

Per-file sizes and sha256 for both releases are in artifacts/product_manifest.json. The shipped products are:

des/yr6	bytes	delve/dr3_gold	bytes
des_yr6_maglim_g_nside128.fits.gz	82,167	delve_dr3_gold_maglim_g_nside128.fits.gz	265,039
des_yr6_maglim_r_nside128.fits.gz	81,811	delve_dr3_gold_maglim_r_nside128.fits.gz	262,674
des_yr6_maglim_i_nside128.fits.gz	81,774	delve_dr3_gold_maglim_i_nside128.fits.gz	259,920
des_yr6_maglim_z_nside128.fits.gz	81,950	delve_dr3_gold_maglim_z_nside128.fits.gz	264,399
des_yr6_stellar_efficiency_cutg.csv	2,412	delve_dr3_gold_stellar_efficiency_cutg.csv	1,524
des_yr6_photoerror_g.csv	1,525	delve_dr3_gold_photoerror_g.csv	828
des_yr6_photoerror_g_catalog.csv	1,525	delve_dr3_gold_photoerror_g_catalog.csv	828
des_yr6_photoerror_g_nocut.csv	1,544	delve_dr3_gold_photoerror_g_nocut.csv	828
des_yr6_photoerror_g_catalog_nocut.csv	1,544	delve_dr3_gold_photoerror_g_catalog_nocut.csv	828
des_yr6_galaxy_misclass_cutg.csv	1,647	delve_dr3_gold_galaxy_misclass_cutg.csv	1,392
des_yr6_audit.json	932	delve_dr3_gold_audit.json	720

The *_raw.csv photo-error provenance and the des_y6_5_sig_*.hsp derivation inputs are deliberately excluded from the archive; they are build inputs, not runtime products.

Provenance

reducer	scripts/des/balrog_selection_function.py
branch	des_and_delve_files
DES catalogs	fiducial_injected_sof.hdf5, fiducial_matched_measured_sof.hdf5
DELVE catalog	BalrogOfTheStars_Catalog_V4.hdf5 (62,922,015 rows)
DELVE depth inputs	delve_dr32_{g,r,i,z}_maglim_wmean.hsp + delve_dr311+dr312_{g,r,i,z}_maglim_Nov28th.hsp
DES depth inputs	des_y6_5_sig_maglim_band_{g,r,i,z}_nside_512.hsp
environment	streamobs conda env, Python 3.14.5, healpy + healsparse

Both audit JSONs ship inside the archive and record row counts, the anchor per band, the error-inflation factor and the classifier used.

Uploading

1. Upload archive/data.zip to Zenodo as a new version of the record.

2. Update BASE_DATA_URL in bin/download_data.py to the new record id (currently 18298544, which still serves the old DES products).

3. ARCHIVE_SIZE_MB in the same file is already updated to 25.
